Introduction

Use case#

LDAPCP is useful when SharePoint is federated with ADFS (or a similar STS) using WS-Federation or OpenID Connect.

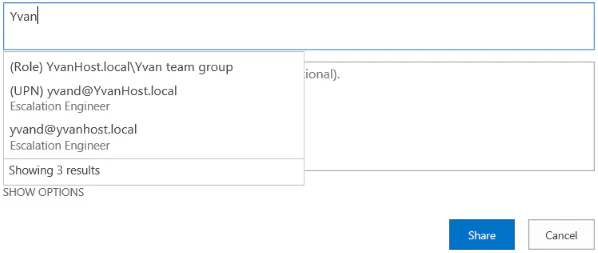

It runs inside SharePoint and queries your Active Directory and LDAP servers to find users and groups:

It can be easily tested by deploying this ARM template in Azure: It creates a full SharePoint farm, configures federation with ADFS and installs LDAPCP.

Prerequisites#

• SharePoint Subscription Edition, SharePoint 2019 or SharePoint 2016.
• .NET Framework 4.8 or newer on all SharePoint servers.

Features#

• Searches users and groups based on the people picker’s input.
• Gets group membership of trusted users (augmentation).
• Queries multiple AD / LDAP servers in parallel.
• Populates the metadata (e.g. email, display name) of the entities.
• Easy to configure through PowerShell or administration pages.
• No dependency on any SharePoint service application.

Improvements over LDAPCP Classic#

• The SharePoint solution is now of type ApplicationServer, which both simplifies and improves the reliability of the install/update/remove operations.
• Administration pages were redesigned to be more intuitive while offering more customization.
• Supports using the SID attribute.
• Gets the nested groups when doing augmentation using LDAP queries.
• A ton of optimizations.
